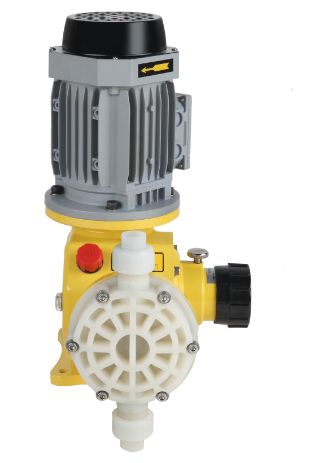

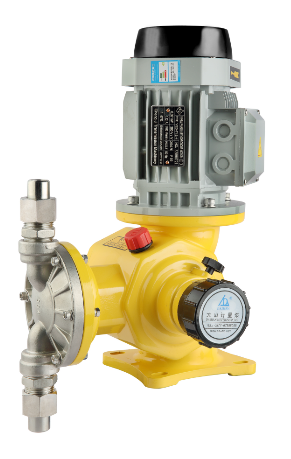

Mechanical diaphragm metering pump
Unit:
Size: DJ-Z
Price:
Mechanical diaphragm metering pump
In order to ensure that the metering pump is suitable for the user's application conditions, the user should try to provide the production parameters when selecting and ordering:
A: Conveying medium (liquid name)F: specific gravity
B: Flow rate (L/H)
C: System pressure (MPa)
D: Medium temperature (℃)
G: Solid content
H: Automatic (manual) control mode
1; External control type
· Standard: pump head PVC motor 380V50Hz
● Optional: Pump head 304, 316, PTFE,
Motor 420V, 220V, 110V
Explosion-proof motor, variable frequency motor
E: Viscosity of conveying medium (CP）
| Performance parameters | ||||||
| model | Flow rate (L/H) | Pressure(Mpa) | Strokes(min-) | Power(KW) | Inlet and outlet diameter (mm) | Weight(KG) |
| DJ-Z25/1.2 | 25 | 1.2 | 48 | 0.37 | PVC: 9*13 hose DN15 adhesive stainless steel: DN15 welding PTFE: DN15 internal thread | 22 |
| DJ-Z50/1.2 | 50 | 1.2 | 48 | |||
| DJ-Z80/1.0 | 80 | 1.0 | 96 | PVC: DN15 adhesive Stainless steel: DN15 welding PTFE: DN15 internal thread | ||
| DJ-Z120/0.7 | 120 | 0.7 | 96 | |||
| DJ-Z170/0.7 | 170 | 0.7 | 96 | |||
| DJ-Z240/0.7 | 240 | 0.7 | 96 | |||
| DJ-Z 330/0.5 | 330 | 0.5 | 144 | 0.55 | 28 | |
| DJ-Z420/0.5 | 420 | 0.5 | 144 | PVC: DN25 adhesive Stainless steel: DN25 welding PTFE: DN25 internal thread | ||
| DJ-Z500/0.5 | 500 | 0.5 | 144 | |||
