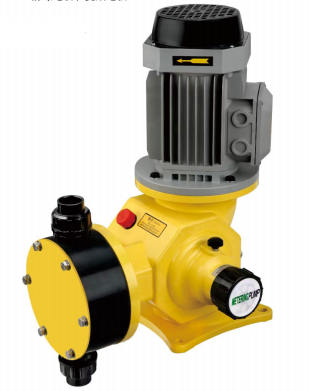

Mechanical diaphragm metering pump
Unit:
Size: DJD
Price:
The main parts of the mechanical diaphragm metering pump are made of precision casting and CNC machining. The design of the liquid terminal structure ensures that the pump does not leak during operation. The drive parts are made of strong material and durable.
Due to the compact design, the operation generation and operation are all square. The flow can be easily adjusted by the flow adjustment knob, installation and daily maintenance.
● Standard: pump head PVC motor 380V50HZ
● Optional: Pump head 304, 316, PTFE,
Motor 420V, 220V, 110V
Explosion-proof motor, variable frequency motor
| Performance parameters | ||||||
| model | Flow rate (L/H) | Pressure(Mpa) | Strokes(min-) | Power(KW) | Inlet and outlet diameter (mm) | Weight(KG) |
| DJD 240/1.0 | 240 | 1.0 | 48 | 0.75 | PVC: DN25 adhesive Stainless steel: DN25 welding PTFE: DN25 internal thread | 40 |
| DJD 380/1.0 | 380 | 1.0 | 48 | |||
| DJD 500/0.8 | 500 | 0.8 | 96 | |||
| DJD 650/0.6 | 650 | 0.6 | 96 | 1.1 | ||
| DJD 850/0.5 | 850 | 0.5 | 144 | |||
| DJD 1000/0.4 | 1000 | 0.4 | 144 | |||
| DJD 1200/0.4 | 1200 | 0.4 | 144 | 1.5 | PVC: DN40 Adhesive Stainless steel: DN40 Welding PTFE: DN40 Internal thread | 50 |
| DJD 1500/0.3 | 1500 | 0.3 | 144 | |||
| DJD 1800/0.3 | 1800 | 0.3 | 144 | |||
| DJD 2000/0.3 | 2000 | 0.3 | 144 | |||
